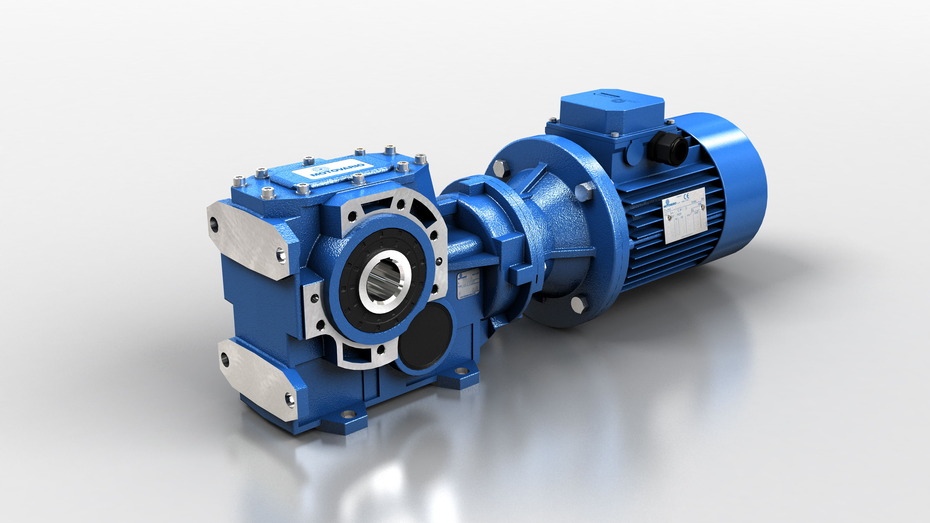

Helical Bevel Gear Reducers – Cast Iron

The technological content of B-Series gear reducers allows for an extraordinary performance/lifespan ratio. These highly versatile gear units are successfully used in a vast number of industrial and civil applications. B-Series units offer excellent value for money and output torque/weight ratio, especially considering that they need very limited servicing.

Available in cast iron from size 063 to 163.

Certifications Available:

ATEX 2GD/3GD

Warranty:

Two years from date of delivery.

Download:

https://my.motovario.com/file.php?s=i3e

characteristics:
  • Sizes: 060-080-100-125-140-150-160

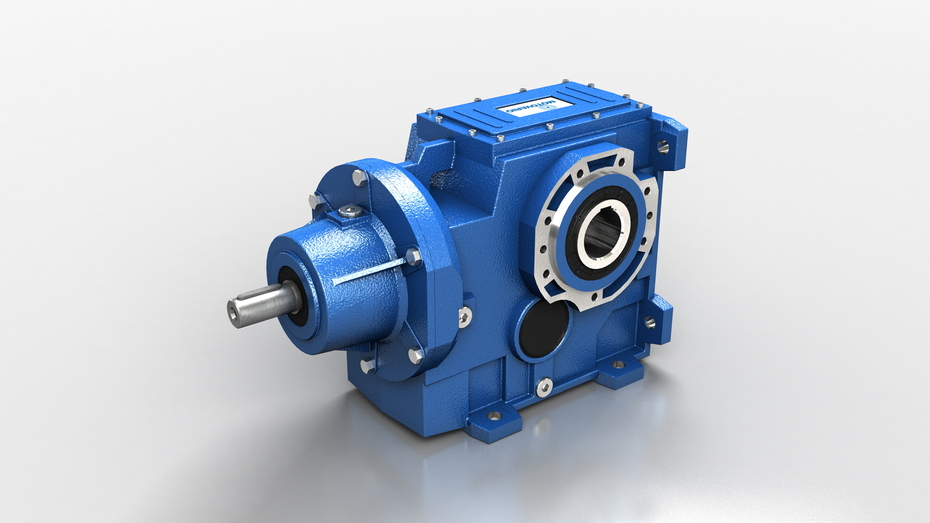

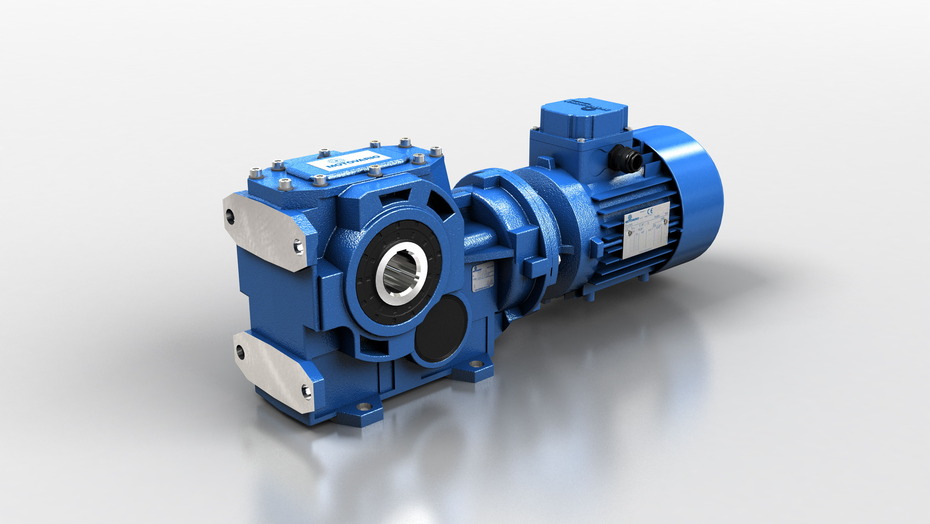

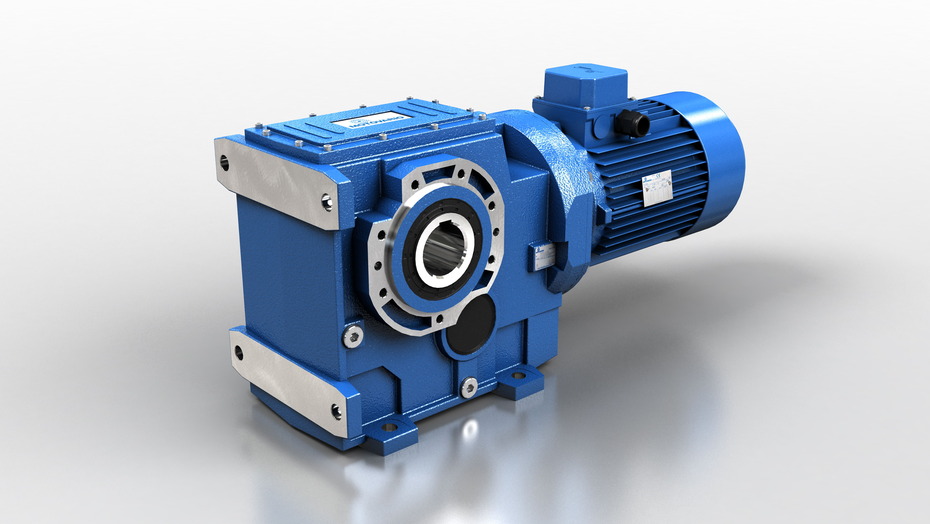

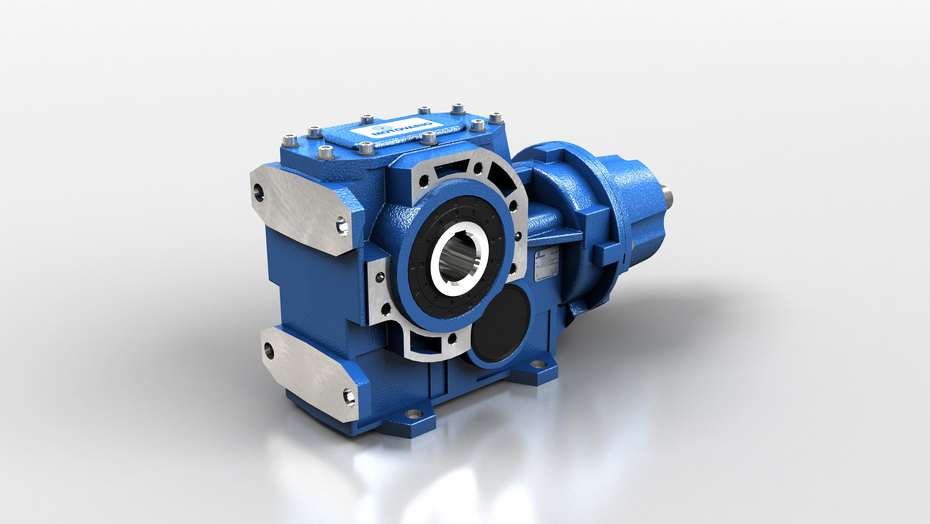

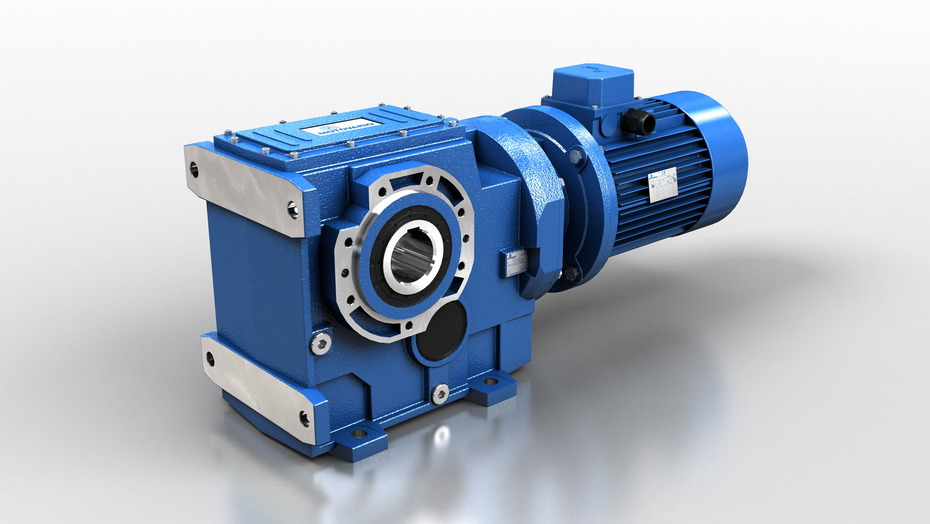

  • Available versions: B - fitted for motor coupling, IB - with input shaft, CB - with compact motor, PB - fitted for motor coupling with flexible joint

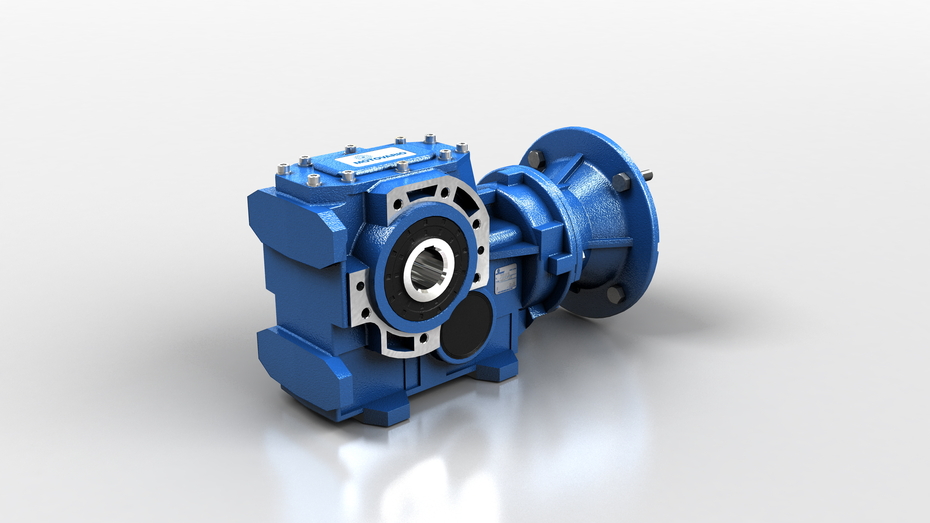

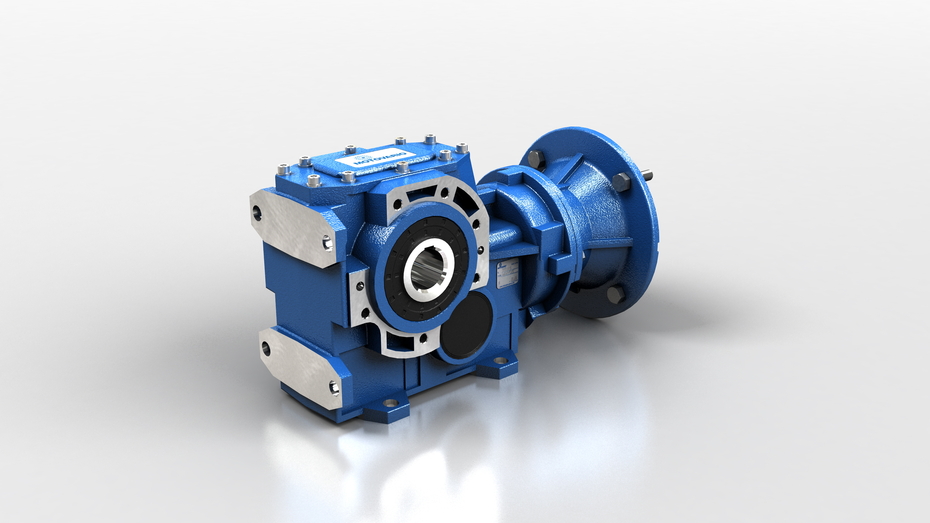

  • Casing with feet FC, flange SC and universal UC
  • Power up to 90 kW
  • Gears hardened and tempered with shaved or ground profile
  • Gearing with 3 reduction stages
  • Gleason spiral bevel gear pairs with run-in profile, mounted as second reduction stage for a higher resistancee
  • Reduction ratios between 5,71 and 187,24
  • Torque max 13.000 Nm and admissible radial loads max 80.000 N
  • High-strength casings optimized with FEM analysis and input and output flanges of grey cast-iron G200 to ensure top level performances and high reliability
  • Load capacity calculated and verified according to ISO 6336 and AGMA 2001
  • Painted with RAL 5010 blue epoxy-polyester powder

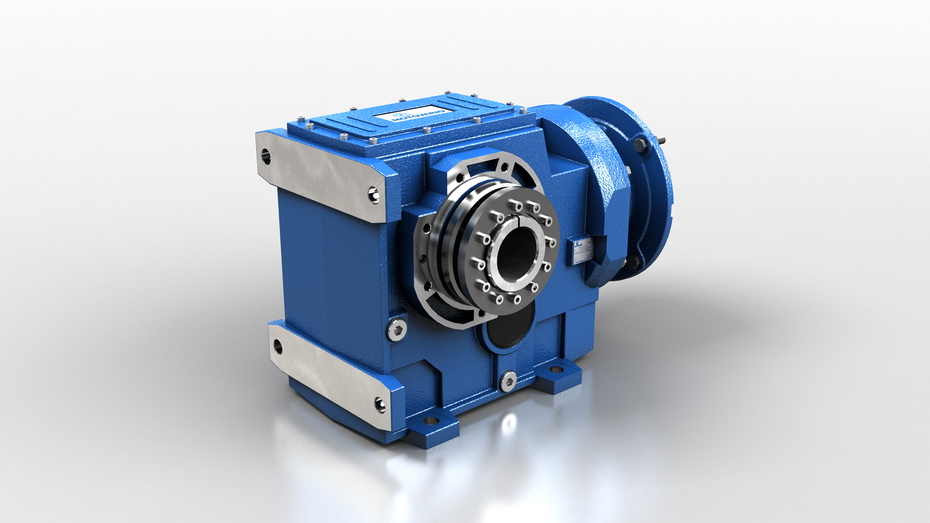

  • Accessories: torque arm, output flange, output shaft, shrink disk, backstop device, protection cover kit, Viton oil seals, reinforced output, assembly/disassembly kit
