These shaft oil seals are similar to the L2M® type, and have been developed for small diameter cylinders, starting from 100 mm. For smaller diameters, please contact us to evaluate our production capacity.

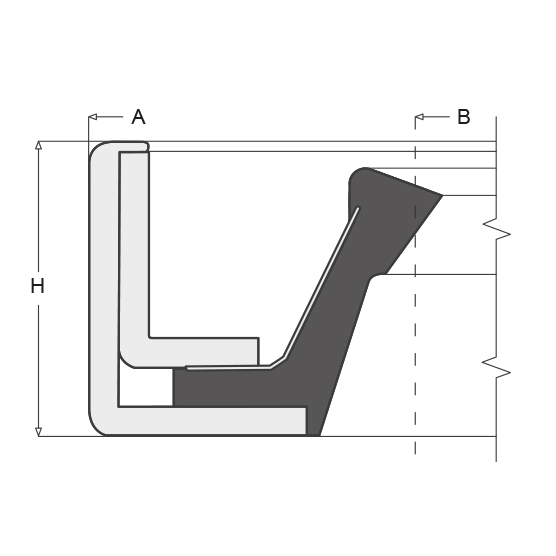

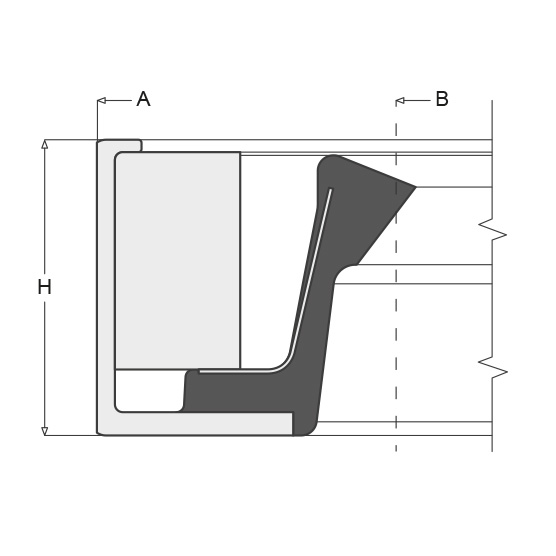

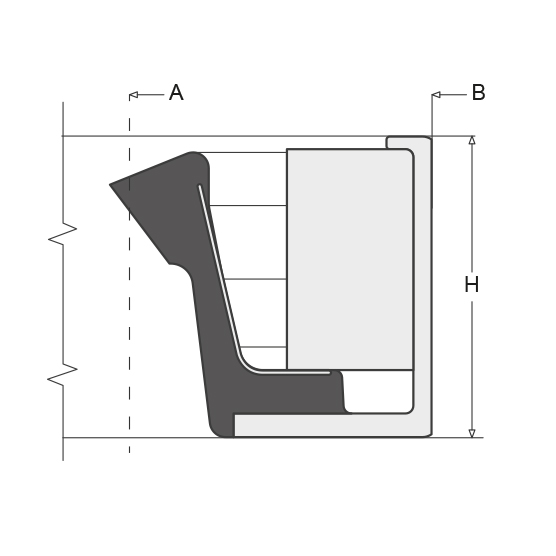

Made with a strong external metal casing ground according to FP’s internal specification, onto which is vulcanized the sealing element. Available in various elastomers.

The presence of a forged steel ring bound to the external metal casing, and a finger spring in stainless steel vulcanized with the sealing lip ensure the correct sealing performance, even when shock loads arise.

This oil seal is recommended for applications with grease and low speeds.

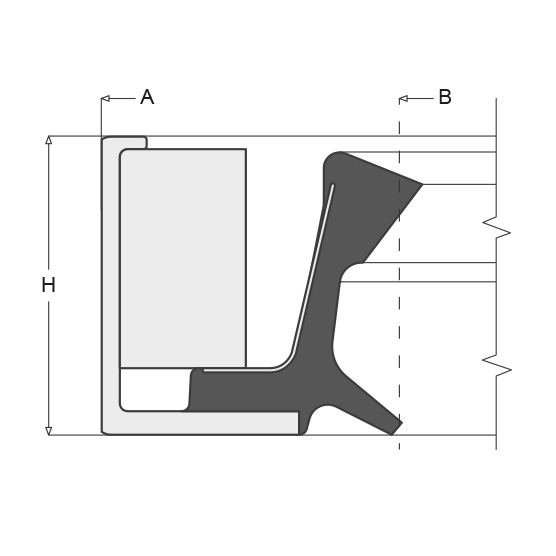

An additional dust lip is available upon request.

Download:

FP-ATS_L1M-Info-Data-Sheet_EN-Rev01_03-11-16.pdf
